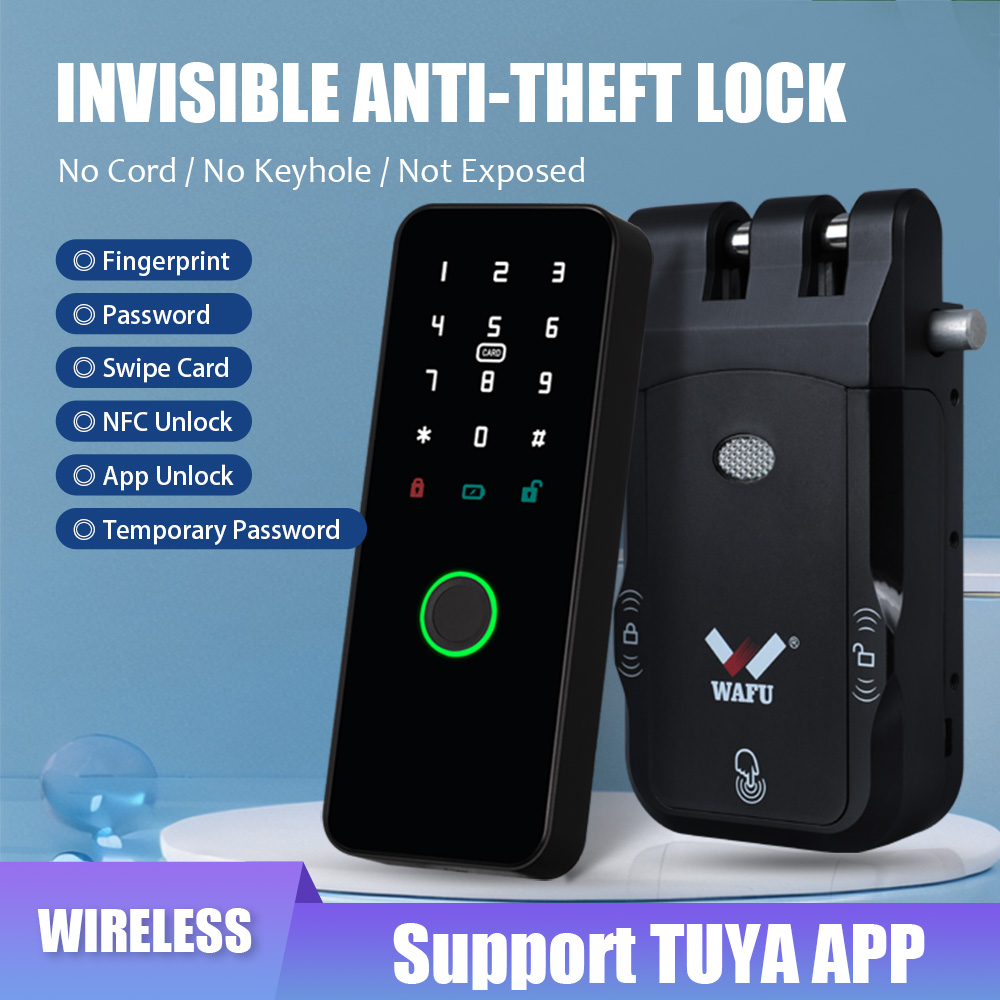

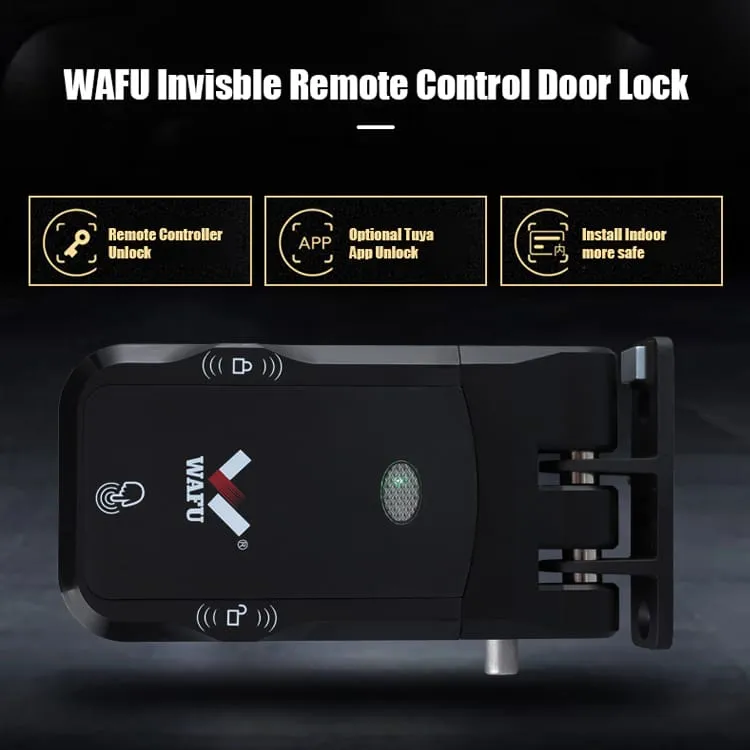

WF-026 hidden wireless six unlock methods

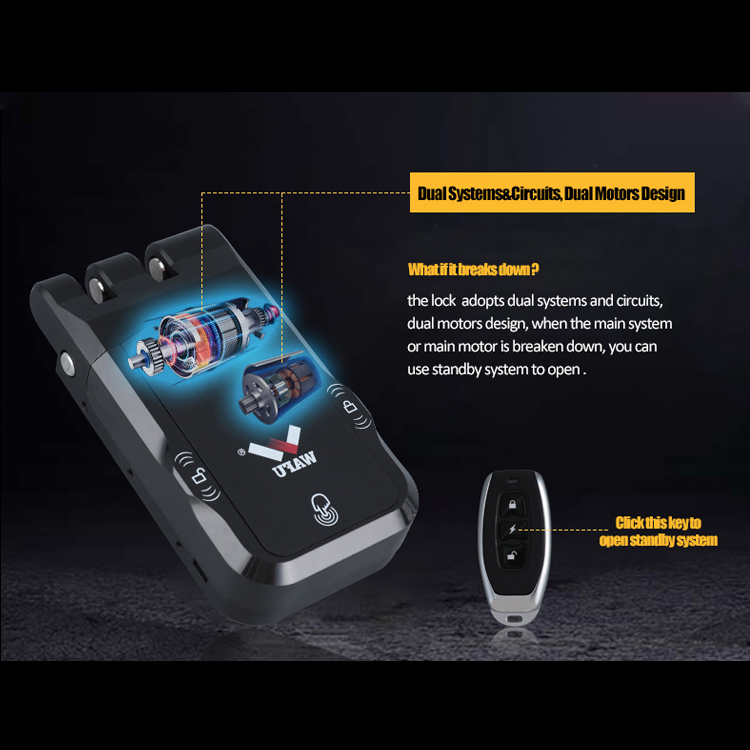

WF-026 dual-system dual-motor fault switch-over

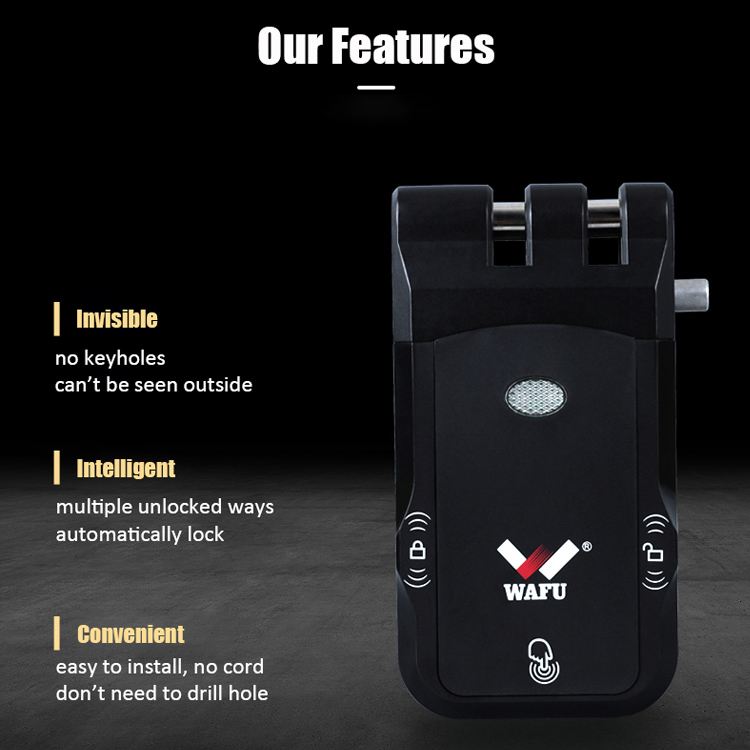

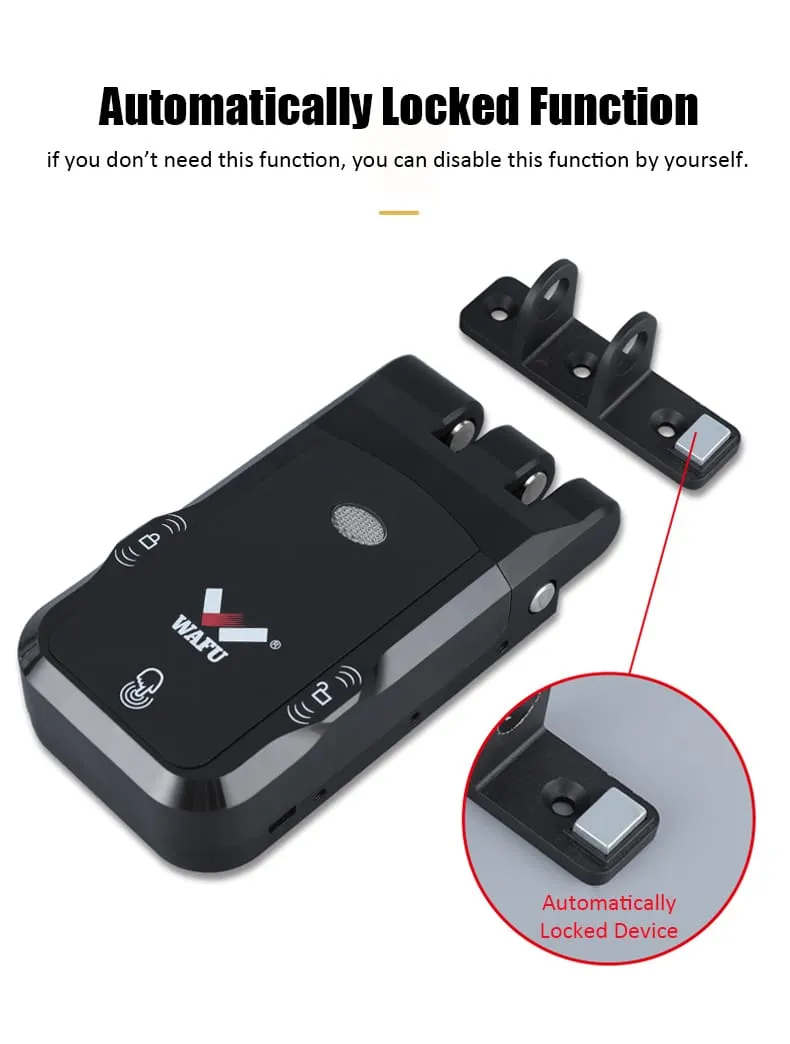

WF-026 hidden smart three features: no-hole / auto / no-drill

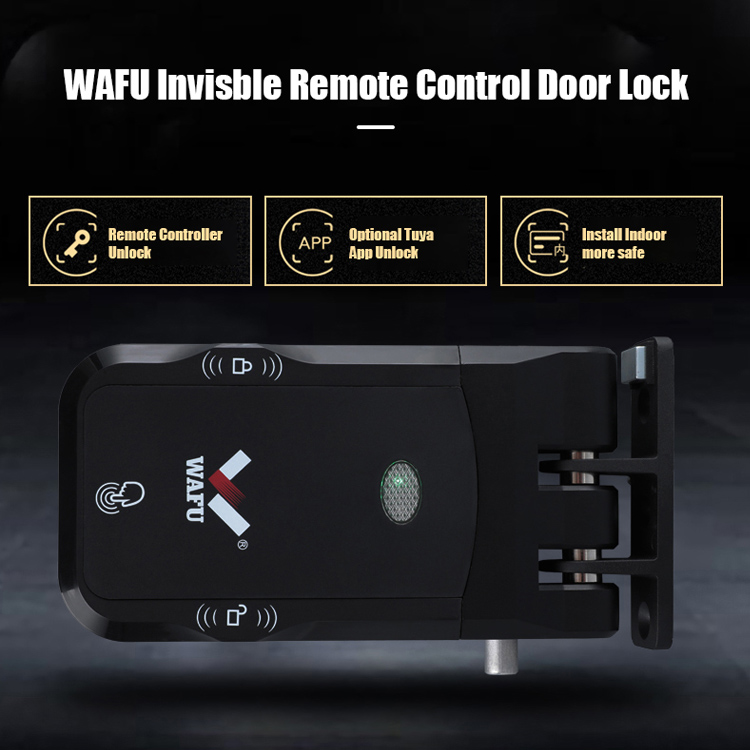

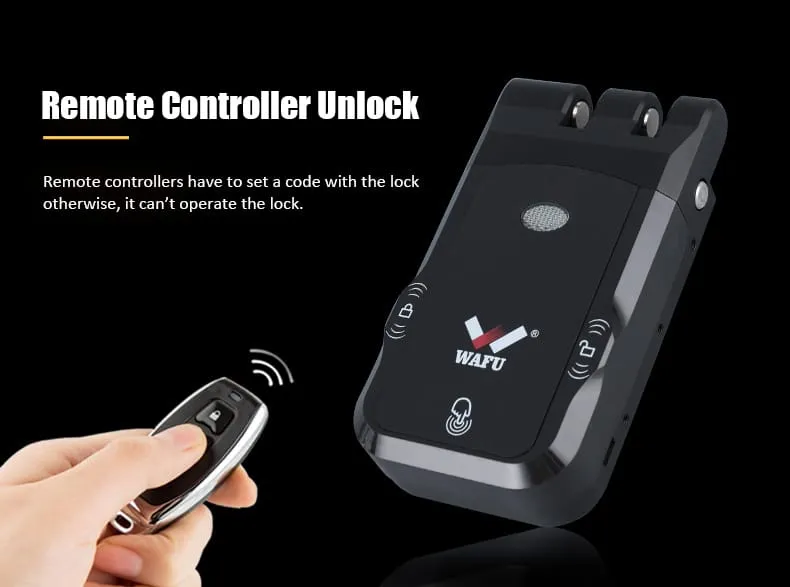

WF-026 indoor install remote + App unlock

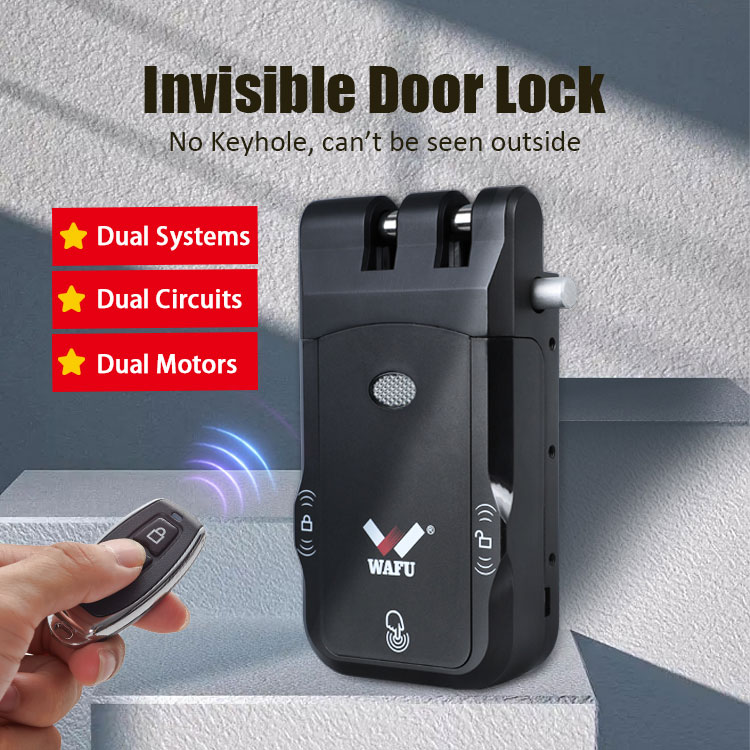

WF-026 no-hole hidden dual-system dual-motor

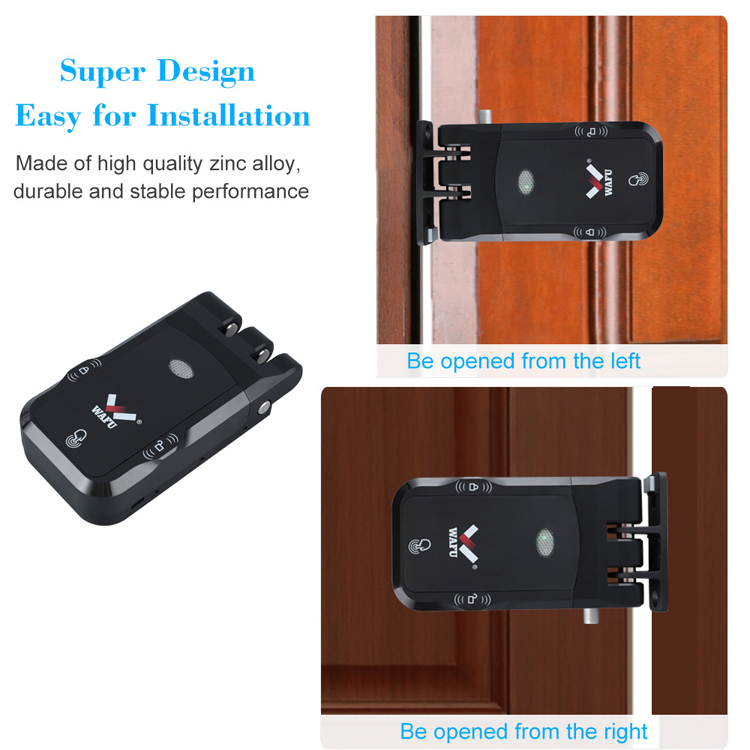

WF-026 zinc-alloy left/right universal install diagram

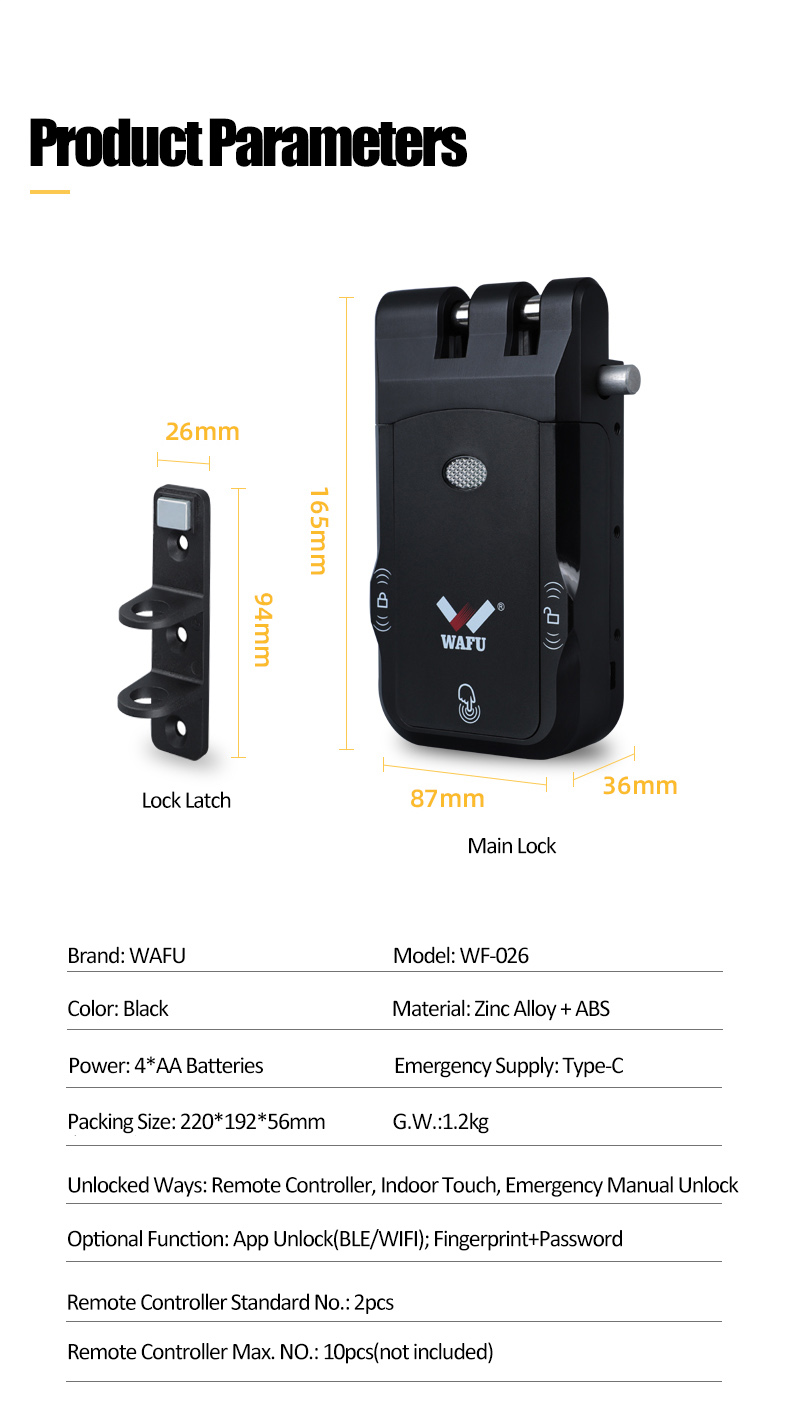

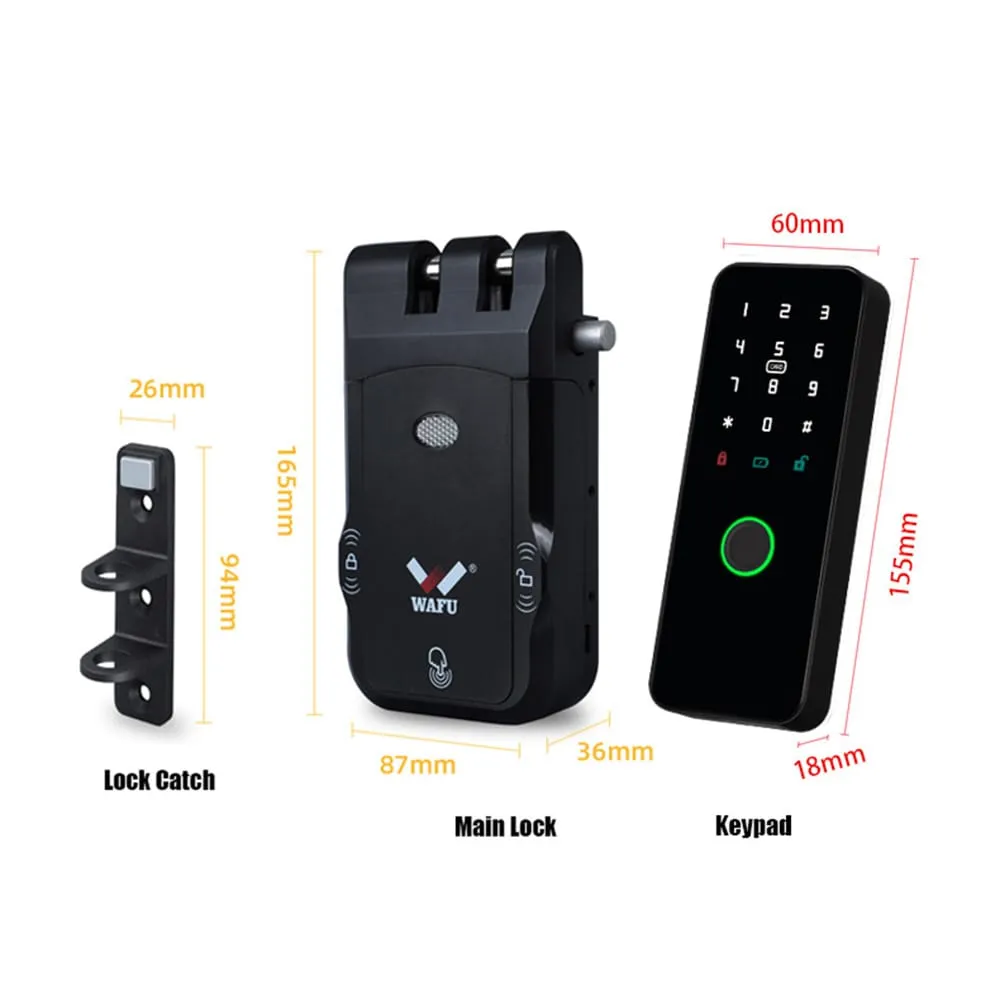

WF-026 lock body and accessories dimensions

❮ ❯

WF-026 Hidden Anti-Theft Lock

Zinc-Alloy Unibody | Dual-System Dual-Motor | Europe Hit

Brand / Model: WAFU WF-026
Material: Zinc-alloy die-cast unibody, modern minimalist style
Unlock Methods: Remote, fingerprint, password, NFC, App (optional)
Applications: Home, apartment, office, hotel
Ready Stock: Black/Silver × 2-remote, ×4-remote, +Wi-Fi remote (8 combos)
Customization: OEM/ODM, brand authorization, multi-language packaging
Certifications: CE/RCC/RoHS

Inquire Now

Product Introduction

WF-026 Hidden Remote Lock is engineered for cross-border export. Its zinc-alloy die-cast housing receives nano-grade plating for ≥10-level corrosion resistance. Eight ready-made combinations—black/silver × 2/4 remotes + Wi-Fi remote version—support direct shipping to the US, Europe and the Middle East.

A built-in low-power RF chip delivers ≥12 months of battery life with 4 × AA batteries. The dual-system dual-motor architecture enables backup motor unlocking if the main system encounters a fault. OEM/ODM customizable, it has become a popular choice among distributors in the US, Europe and the Middle East, and is ready-to-use for homes, apartments and B&Bs.

WF-026+Keypad Detailed Technical Specifications

Attribute	Specification
Model Number	WF-026+Keypad
Brand Name	WAFU
Place of Origin	Guangdong, China
Data Storage Options	Cloud
Lock Cylinder Security Grade	Grade C
Network	Bluetooth
Smart App	TT Lock App, Tuya App
Material	Zinc Alloy + ABS
Color Options	Black, Grey
Dimensions	165 × 87 × 36 mm, 155 × 60 × 18 mm
Weight	1.4 kg
Door Type	Wood Door, Steel Door, Stainless Steel Door, Aluminum Door, Glass Door
Power Supply	4 × AA Batteries, 3 × AAA Batteries (not included)
Transmission Method	Wireless
Frequency	433MHz (±500KHz)
Operation Range	Within 20m (no obstacles)
Usage/Applications	Home, Hotel, Office, Apartment, Villa, etc.
Suitable Door Types	Glass Door, Metal Door, Wooden Door, etc.
Packaging Size	25 × 21 × 11 cm
Gross Weight	1.350 kg
Selling Units	Single item

Product Details

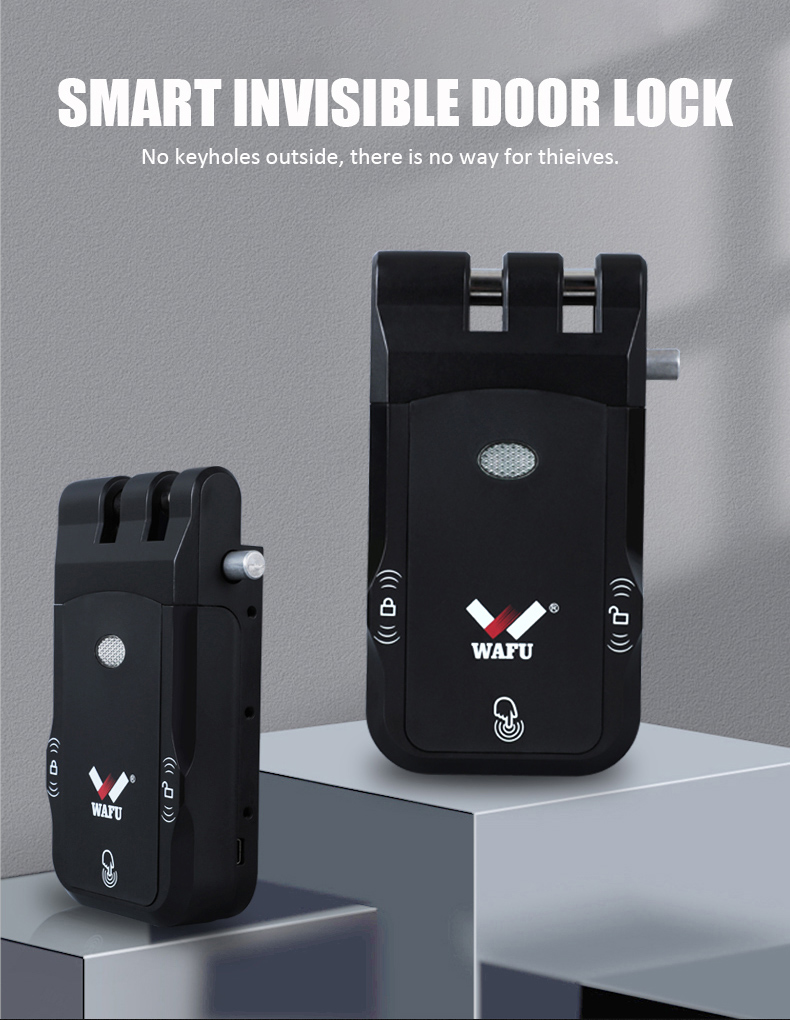

WF-026 outdoor keyhole-free anti-theft design

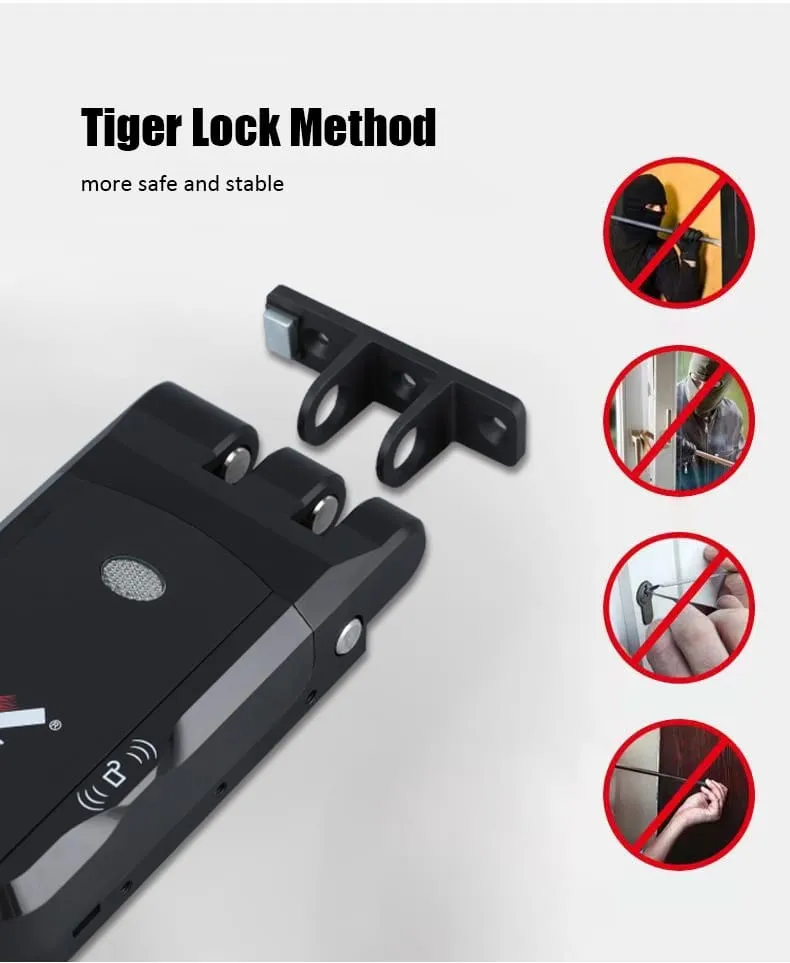

WF-026 tiger-peak deadbolt for higher security

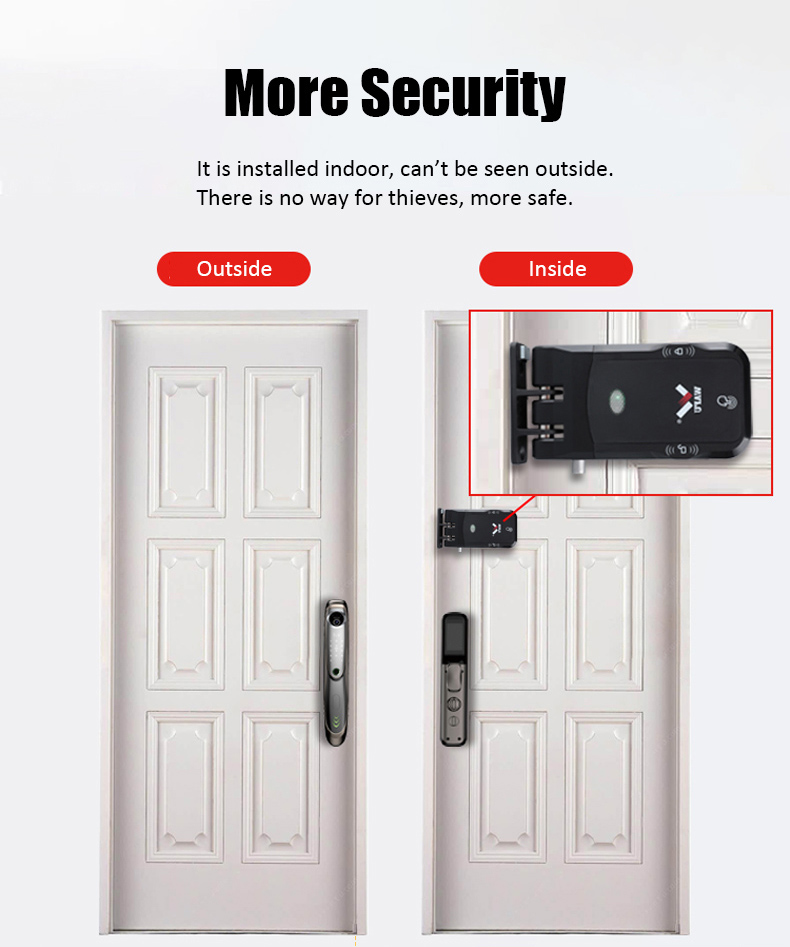

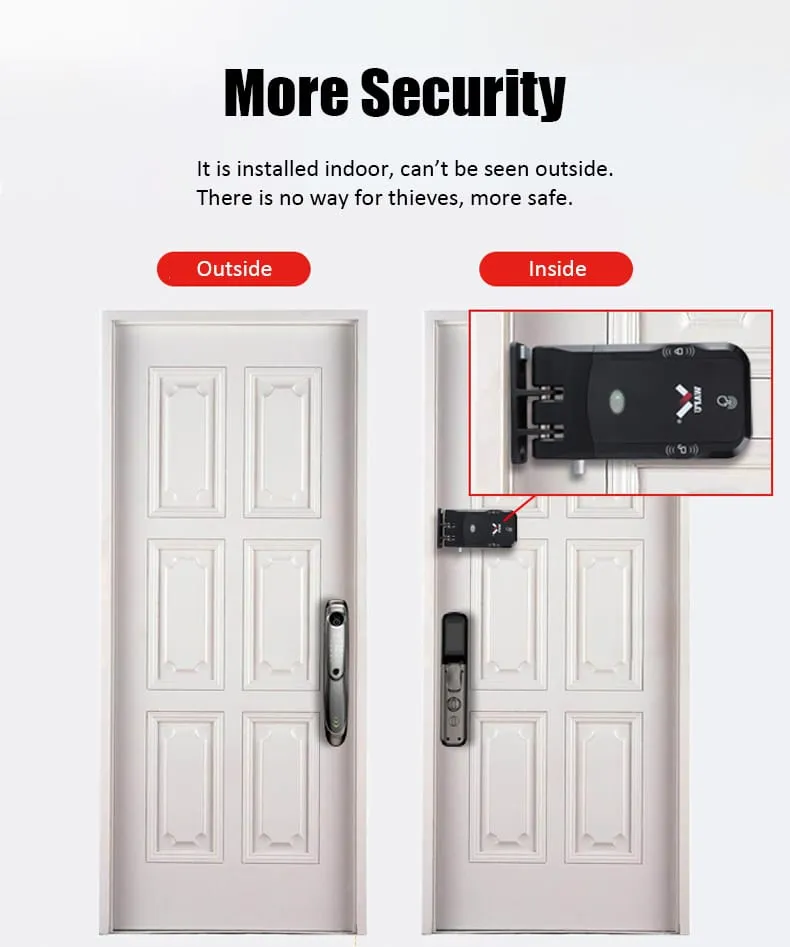

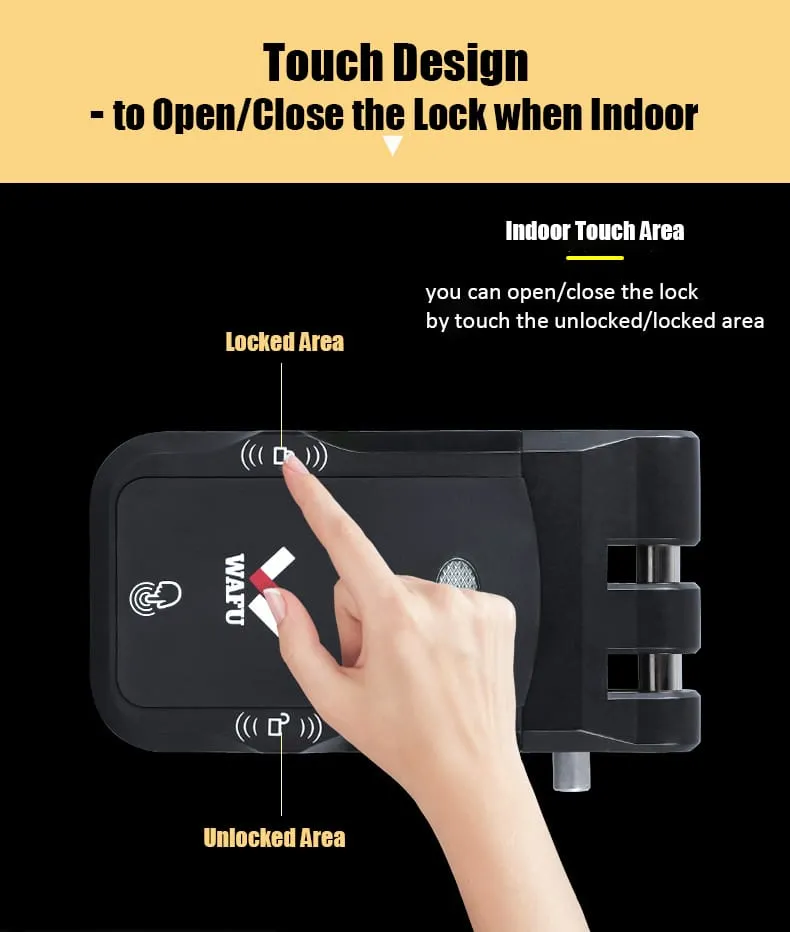

WF-026 indoor hidden keyhole-free anti-theft

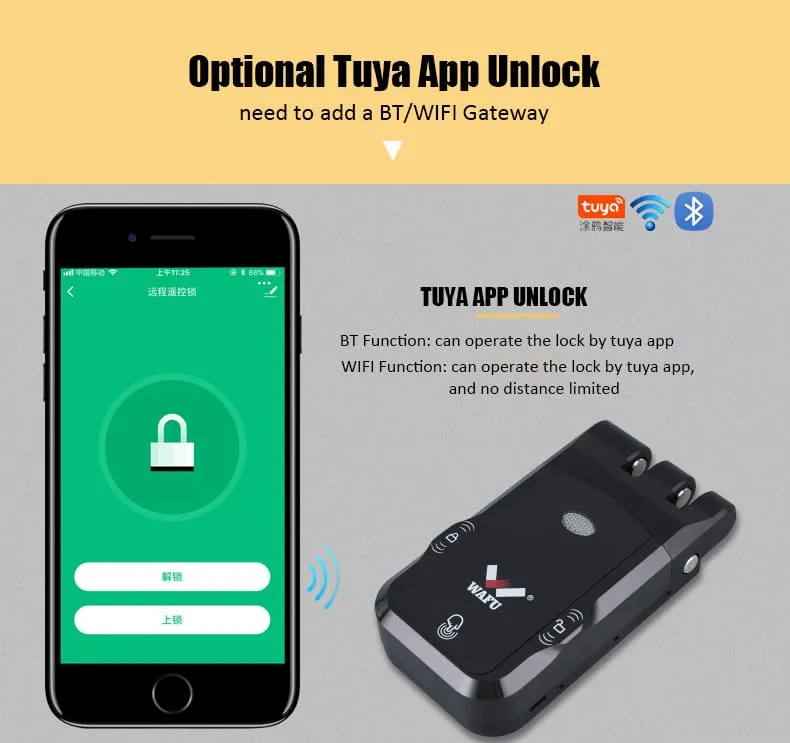

WF-026 optional Tuya App Bluetooth/Wi-Fi remote

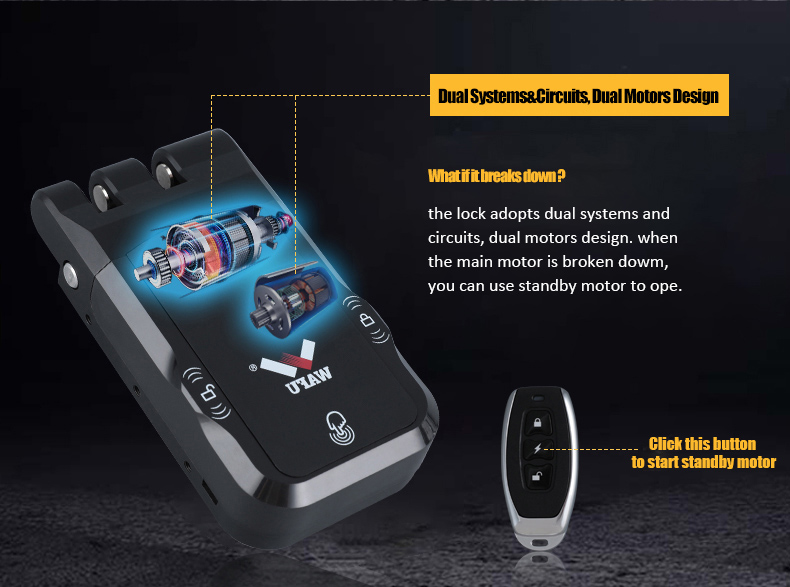

WF-026 dual-system dual-motor one-click backup

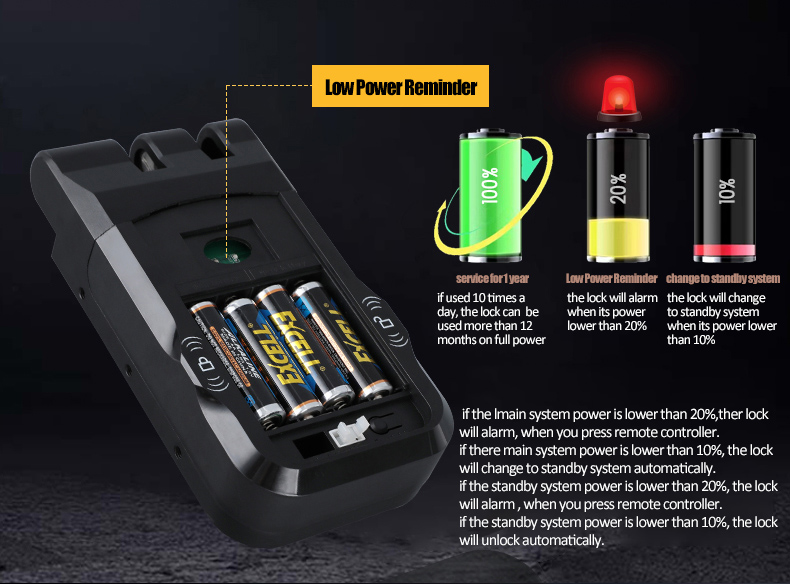

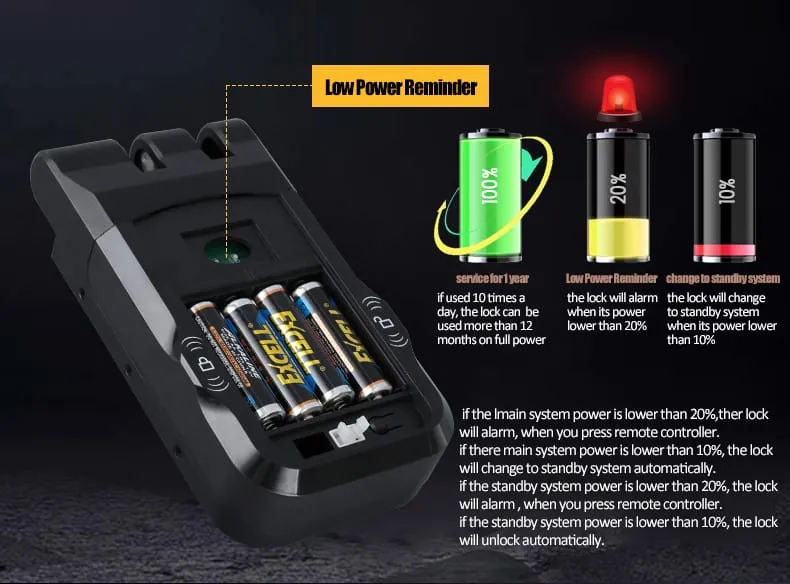

WF-026 20% low-battery alarm & 10% backup switch
